Satin Chrome - VCH Series
Couldn't load pickup availability
Description

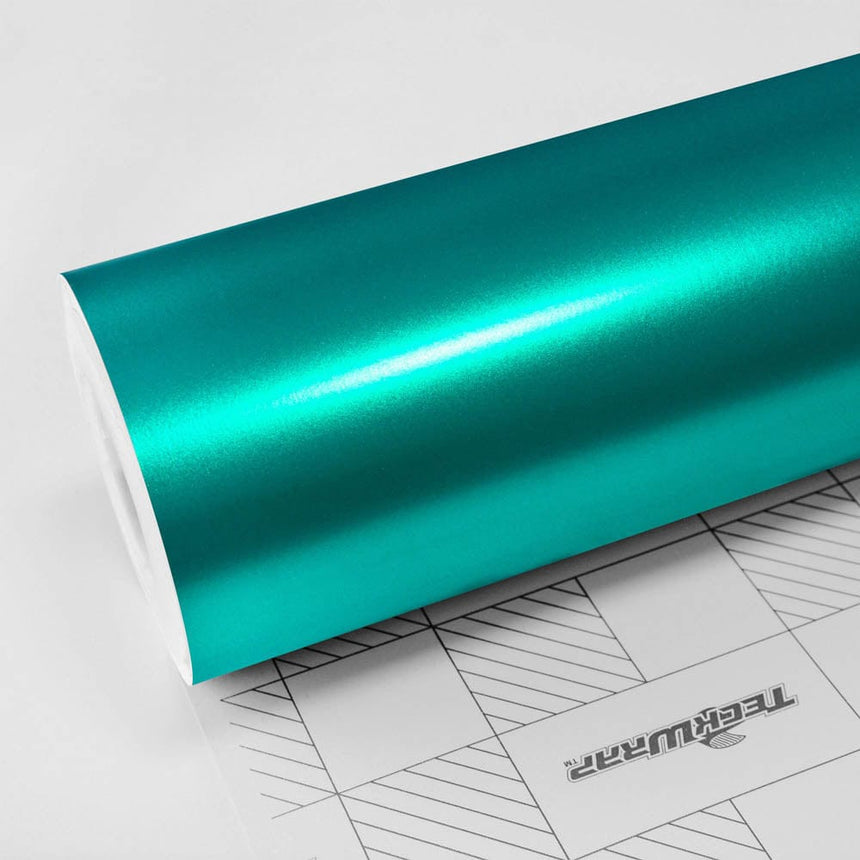

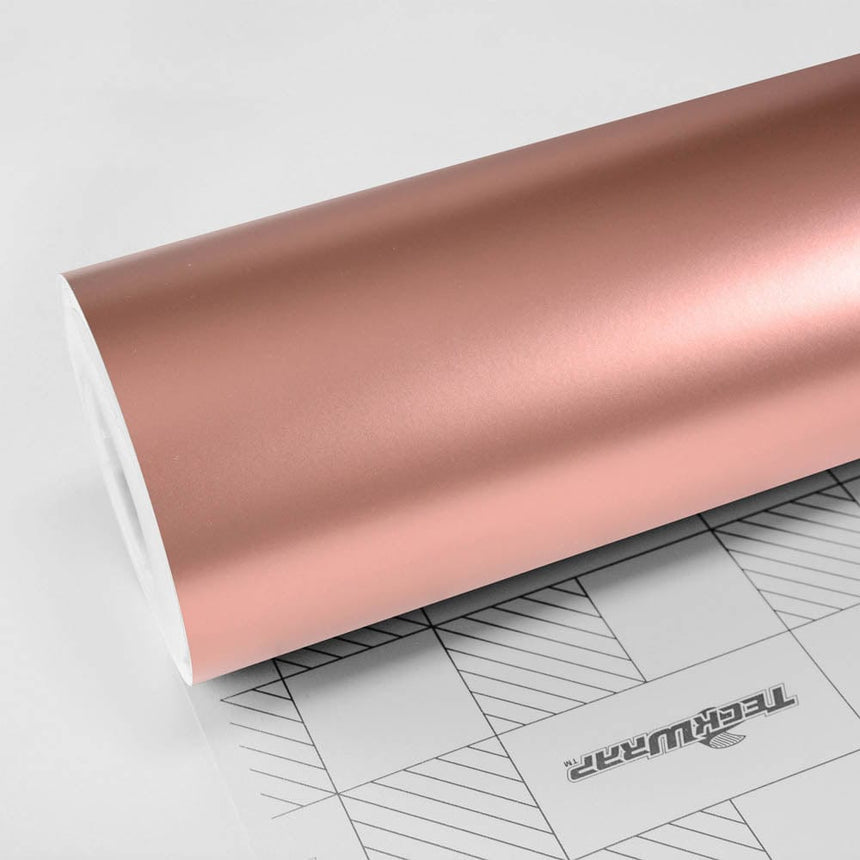

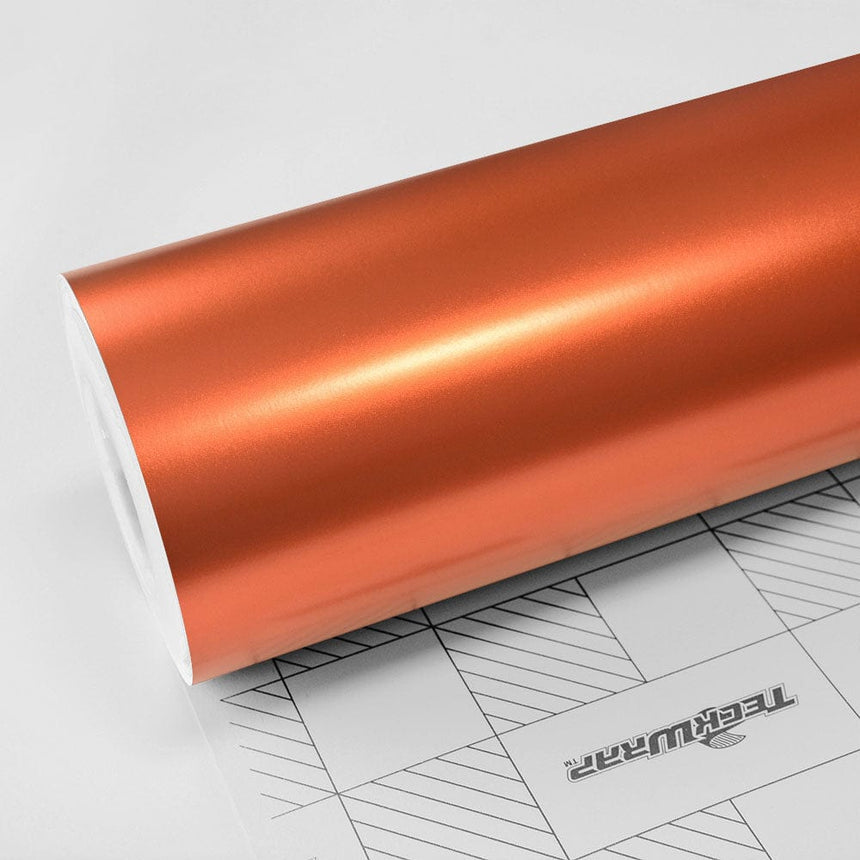

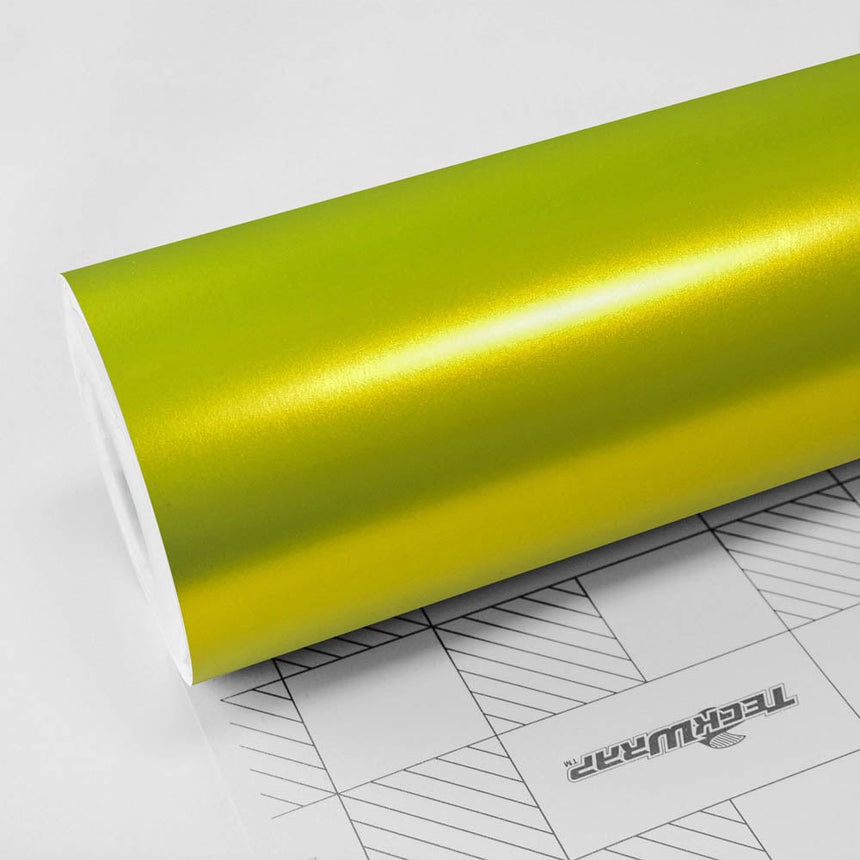

With a collection of eight elegant colors, TeckWrap offers you this series of satin chrome vinyl wrap. This luster film gives your vehicle a glossy finish - meanwhile, not too shiny. As a proud supplier, TeckWrap has plenty of film selections that have good conformability and durability. The material is stretchable enough to wrap every edge and recessed area easily. And the adhesive is safe without giving you any trouble when uninstall. The better thing is, these vinyl wraps from TeckWrap are all of the high quality but reasonable and affordable prices.
Specifications
Conformable and flexible hybrid material. Designed for car wrapping (the smooth or medium curved surface).
The thickness of the film: 0.10mm
The thickness of film with release liner: 0.26mm
Type of film: Polymeric vinyl film with new air release channels
Series: 180 series
Adhesive: Henkel solvent-based acrylic adhesive, transparent, ultra-weather-resistant, viscosity 1000~3000cps, thickness 12 μm dry
Release liner: Felix Schoeller Release Liner / 20-104-20-1,9 printed, double side PE coated Kraft. One side solventless silicone-coated, air release (ISO 9001, ISO 140001, OHSAS 18001)
Storing period: 3 years if stored in +10°С to +20°С, relative humidity 50%, in original package, away from direct sunlight, clean and dry place.
Indoor life: 4 years when followed rules of application and use
Outdoor life: 2 years when followed rules of application and use (Zone 1)
Dimensional stability: shrinkage less than 0,20%
Plastification: between 23%-31%
Breaking Strength: 27.7 N/10mm (Average) Test Method: ASTM D3759/D3759M-05
7.4 N/10mm (Average) Test Method: ASTM D3330/D3330-04
Light Ageing in UV Exposure:
Test Method: ASTM D4329-13 Cycle A & ISO 105-A02:1993/Cor.2:2005, Test result: 4-5
Exposure cycle: ASTM D4329-13 cycle A, Lamp type: UVA-340
8h UV at (60±2.5)℃ BPT, 0.89 W/ (m2•nm)@340nm, 4h condensation at (50±2.5)℃ BPT, Exposure duration: 48h
Package: Roll width 152 cm, length 18 m, weight 13 kg
Install tips:
Temperature: from +17°С to +25°С, usage from -55°С to +65°С
Tools: Standard squeegee with soft (wet) buffer
Conformability: smooth and medium curved surface
Directional: yes
Overlap width: 3-4mm
Post heating: 90 Celcius
How Much Wrap Do I Need?
Motorcycles 10-16 feet (3-5 meters)
Mini, small cars 42-45 feet (13-14 meters)
Convertible 49-52 feet (15-16 meters)
Coupe 55-59 feet (17-18 meters)
Sedan 55-59 feet (17-18 meters)
Hatchback 52-55 feet (16-17 meters)
Sports Car 52-55 feet (16-17 meters)
Station Wagon 59-65 feet (18-20 meters)
Sport-utility Vehicle (SUV) 55-63 feet (17-19 meters)
Minivan 65-80 feet (20-24 meters)
Pickup Truck 72-92 feet (22-28 meters)
Keep in mind that you may need extra material for repairs.
Therefore we recommend adding 6-9 feet (2-3 meters) to your measurements to avoid additional shipping expenses.
To achieve a perfect finish
- We recommend using a tack reducer for flat panels.
- Installation by at least two people/panel
- Don't heat up to the line where the film is lifted to prevent adhesive lines.
- Apply max 50 degrees of heat when stretching to prevent fading and marks.
- Apply soap and water over the squeegee felt to avoid scratches.
- Relax the film (heat and let it cool down) before applying it to a recess
- Apply adhesive promoter on deep recesses
- Post-heat a vinyl film to a recommended temperature
Disclaimer
Important note: The images, colors, and finishes on screen are approximate. For the real representation of the product, always check the color swatch. Rolls from the same production LOT number should be used for completing a wrap job as a slight batch to batch variation of color may occur. One needs to handle metalized films with care as the appearance of the metalized layer could change upon crumpling, overstretching, too strong heating. The film may scratch during the application or a day in and out use. The scratching of the film is not covered by the warranty.
Сaution: Before purchasing and using, a customer shall determine the product's suitability for its intended use and should have experience in wrapping metalized films. The current film has a limited warranty for outdoor use on horizontal surfaces - up to 1 year. Actual performance depends on exposure conditions such as high temperature and pollution. We recommend using a steam vacuum or IRR heater for installation. The dry application only. Please refer to the TeckWrap Installation Guide for additional information.
